300mm*300mm LED Panel Lights,18W Flat Panel

Place of Origin : china

Brand Name : gidealed

Certification : CE ,ROSH, TUV,UL,FCC

Model Number : GD-PL3030-18W

MOQ : 1-30 pcs

Packaging Details : 30 pcs/box

Delivery Time : 3 Days

Payment Terms : T/T, L/C, West Union

Supply Ability : 5000pcs per week

Contact Now

18W LED Panel Lights 300*300mm

Features:

♥ Imported LGP , the light guide light rate is 80% above
♥ Pure aluminum frame, bright silver processing, good heat dissipation, high-grade appearance
♥ The light even effect and no dark area, efficacy > 75 LM/W
♥ Up to 70% energy savings
♥ Isolation constant current power supply, input voltage: AC85-265V,
♥ High efficiency constant current driver can reach more than 90%,PF>0.92
♥ Unique design, Embedded installation without the accessories.
♥ Special circuit design, each group of LEDs work separately, avoiding any problem of lighting
output caused or influenced by single faulty LED.

Specifications:

	model:	GD-PL3030-18W
	Input Power:	18 w
	Input Volt:	AC90-265V
	PF	>0.95
	Luminous Flux:	1200-1300 lm
	Dimension:	295mm295mm12mm
	LED type:	Epistar SMD2835 LED
	Housing	aluminum
	Housing Color:	Silver
	Net Weight:	1.9 kg
	LED Color:Warm white, Pure white, Cool white

Curve of light distribution & Lux distance(Ta=25℃±3℃)

300mm*300mm LED Panel Lights,18W Flat Panel

Power connection:

300mm*300mm LED Panel Lights,18W Flat Panel

Installation Instruction:

300mm*300mm LED Panel Lights,18W Flat Panel

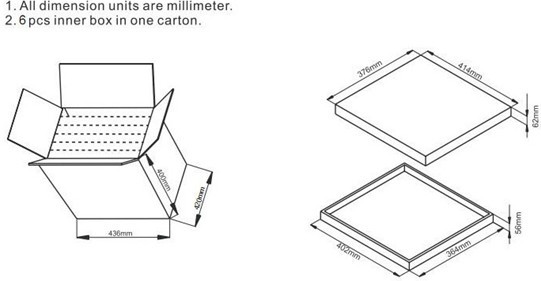

Package:

300mm*300mm LED Panel Lights,18W Flat Panel

Applications:

Widely used in the hotels, meeting rooms, offices, hospitals, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, display, backlight, home indoor lighting and so on.

300mm*300mm LED Panel Lights,18W Flat Panel
